HAOYE AUV

WD124-6 AUV

• A power of 300 W enables the vehicle to reach a speed of 6 knots

Thrust 2 knot @ 10.4 Kg / 4 knot @ 6.0 Kg...

Rated Rotational Speed 300° /s

Rated Voltage 12VDC

Material Housing: Aluminum Alloy / Propeller...

Rotation Direction Right Hand Rotation

Temperature Storage Temperature: -40~70℃, Opera...

Sealing Type Zero-Permeability Magnetic Coupling...

Operating Water Depth 0-300m

Driver Built-in

Signal Power Supply 12VDC(±5%), ≤210mA

Fairing Black

Control Mode/Speed Feedback CAN

Weight 3.5Kg

Housing Material Aluminum Alloy

Rated Torque 1Nm

Control Mode / Speed Feedback CAN

Bu ürün için teklif alın

Bilgilerinize en geç bir iş günü içinde dönüş yaparız.

Ürün hakkında

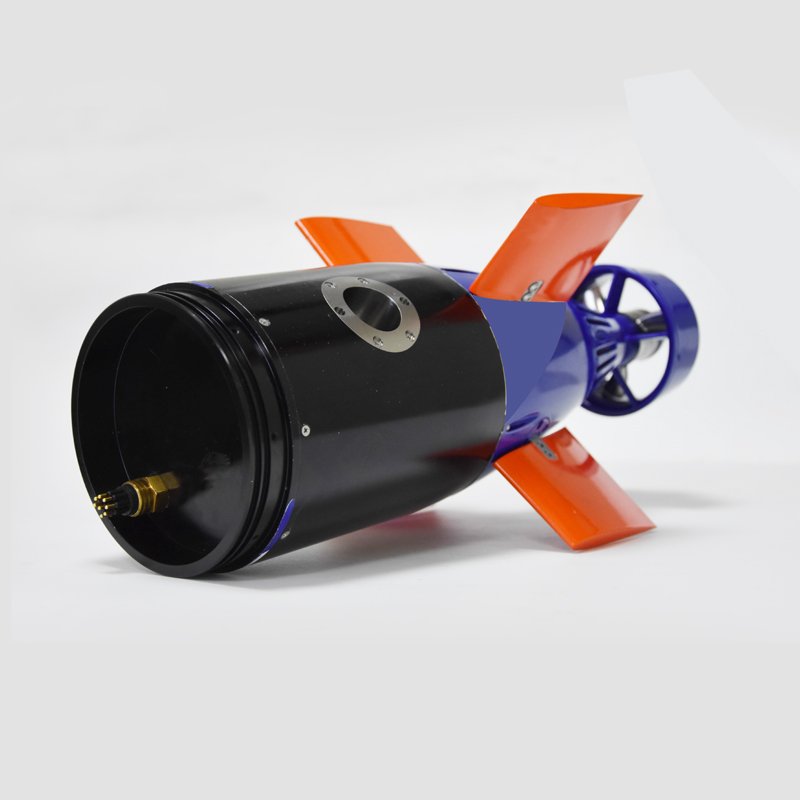

WD124-6 AUV

• A power of 300 W enables the vehicle to reach a speed of 6 knots

• Suitable for Autonomous Underwater Vehicles (AUVs) with a diameter of φ124 mm

• Its efficiency is particularly outstanding at an underwater navigation speed of 2 knots, which is conducive to long-time endurance

Thruster Parameters

Steering Gear Parameters

Overall Dimensions

Teknik özellikler:
Thrust: 2 knot @ 10.4 Kg / 4 knot @ 6.0 Kg / 6 knot @ 4.5 Kg
Rated Rotational Speed: 300° /s
Rated Voltage: 12VDC
Material: Housing: Aluminum Alloy / Propeller: Stainless Steel
Rotation Direction: Right Hand Rotation
Temperature: Storage Temperature: -40~70℃, Operating Temperature: -5~40℃
Sealing Type: Zero-Permeability Magnetic Coupling Rotary Sealing
Operating Water Depth: 0-300m
Driver: Built-in
Signal Power Supply: 12VDC(±5%), ≤210mA
Fairing: Black
Control Mode/Speed Feedback: CAN
Weight: 3.5Kg
Housing Material: Aluminum Alloy
Rated Torque: 1Nm
Control Mode / Speed Feedback: CAN
