HAOYE AUV

WD533-30 AUV

• A power of 75 kW enables the vehicle to achieve a navigation speed of 16 knots

Thrust 20 knot @ 423.5 Kg / 25 knot @ 344....

Rated Rotational Speed 300° /s

Rated Voltage 24VDC

Material Housing: Aluminum Alloy / Propeller...

Rotation Direction Right-hand Rotation

Temperature Storage Temperature: -40~70℃, Opera...

Sealing Type Dynamic Sealing

Operating Water Depth 0-300m

Driver Built-in

Signal Power Supply 24 VDC(±5%）, ≤210 mA

Fairing Black

Control Method / Rotational Speed Feedback CAN

Weight 310Kg

Housing Material Aluminum Alloy

Rated Torque 30 Nm

Bu ürün için teklif alın

Bilgilerinize en geç bir iş günü içinde dönüş yaparız.

Ürün hakkında

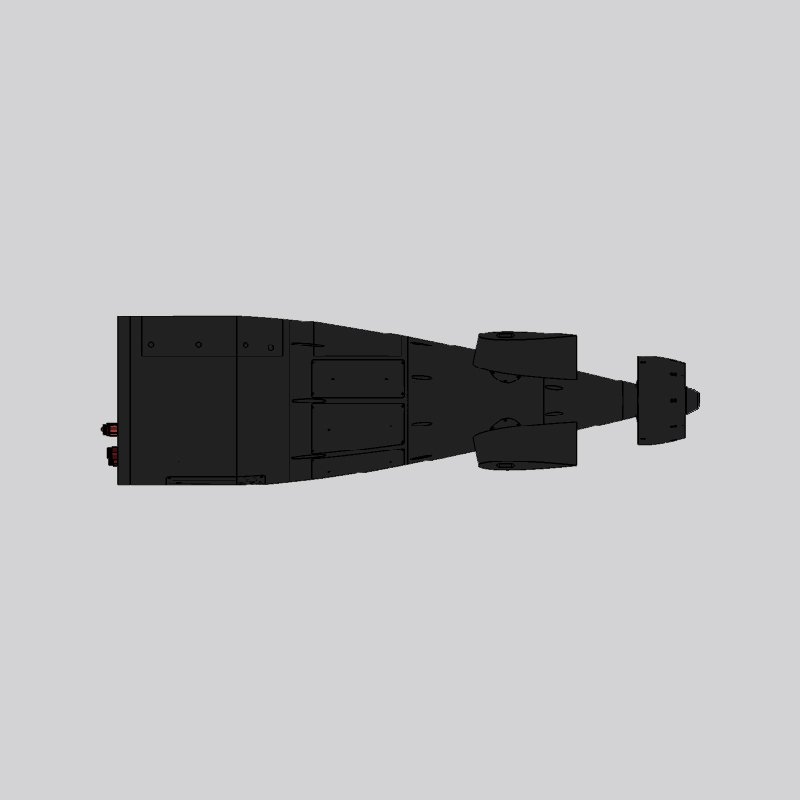

WD533-30 AUV

• A power of 75 kW enables the vehicle to achieve a navigation speed of 16 knots

• Suitable for φ533 mm Autonomous Underwater Vehicle (AUV)

• It exhibits particularly excellent efficiency at an underwater navigation speed of 30 knots, which is conducive to long-duration endurance

Propeller Parameters

Steering Gear Parameters

Overall Dimensions

Teknik özellikler:
Thrust: 20 knot @ 423.5 Kg / 25 knot @ 344.3 Kg / 30 knot @ 296.2 Kg
Rated Rotational Speed: 300° /s
Rated Voltage: 24VDC
Material: Housing: Aluminum Alloy / Propeller: Stainless Steel
Rotation Direction: Right-hand Rotation
Temperature: Storage Temperature: -40~70℃, Operating Temperature: -5~40℃
Sealing Type: Dynamic Sealing
Operating Water Depth: 0-300m
Driver: Built-in
Signal Power Supply: 24 VDC(±5%）, ≤210 mA
Fairing: Black
Control Method / Rotational Speed Feedback: CAN
Weight: 310Kg
Housing Material: Aluminum Alloy
Rated Torque: 30 Nm
