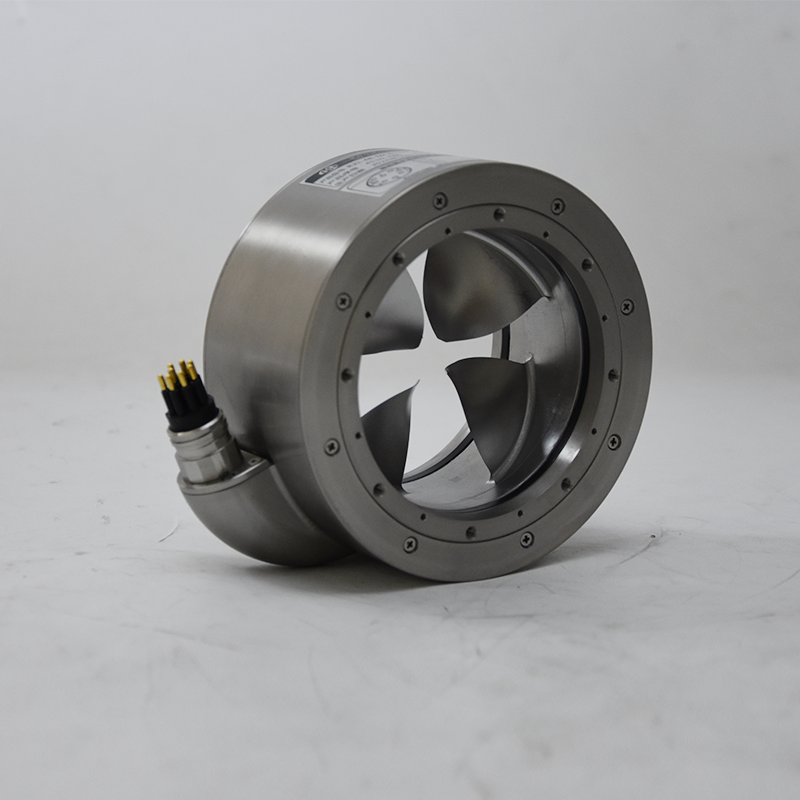

R21 Rim Thruster

• It is suitable for the main propulsion of Autonomous Underwater Vehicles (AUVs) with a diameter of more than 1000mm.

• It is suitable for the main propulsion of Autonomous Underwater Vehicles (AUVs) with a diameter of more than 1000mm.

• The propeller adopts a pump-jet design with front and rear stators, which reduces the combined torque while significantly improving the operating efficiency.

• Its efficiency is particularly outstanding at an underwater navigation speed of 12 knots.

Thruster Overall Dimensions Unit: mm

Driver Overall Dimensions Unit: mm

Operating Water Depth: 0-6000m

Thrust vs Rotational Speed Table (1)

Thrust vs Input Power Table (2)

Teknik özellikler:
Rated Rotational Speed: 2300r/min
Rated Voltage: 48/72/100/150/200/240/300VDC
Housing Material: Aluminum Alloy / Titanium Alloy
Rotation Direction: Left Hand Rotation / Right Hand Rotation
Propeller Material: Stainless Steel
Temperature: Storage Temperature: -40~70℃, Operating Temperature: -5~40℃
Sealing Type: Zero-Permeability Magnetic Coupling Rotary Sealing
Operating Water Depth: 0-200m / 0-6000m / Full Ocean DepthOil Filled Compensation for Operating Water Depth >200m
Driver: Built-in / External
Signal Power Supply: 12VDC(±5%), ≤250mA
Fairing: /
Control Mode/Speed Feedback: Analog Voltage (Pulse Feedback/Analog Voltage Feedback)PPM / RS485 / CAN
