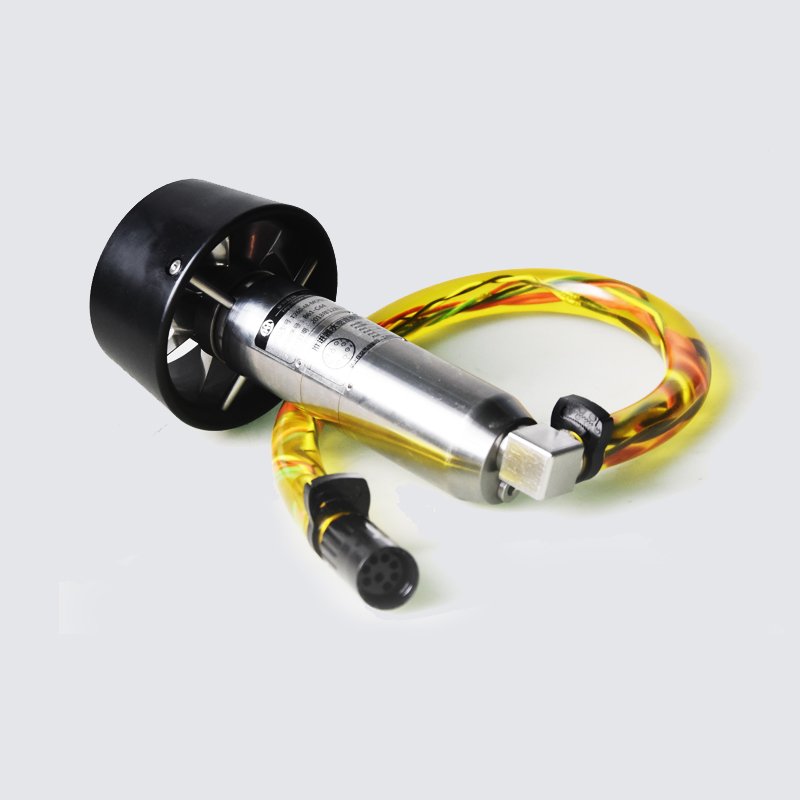

T260 Underwater Thruster

A main propulsion device for AUVs with a diameter of no more than 200mm, or the main propulsion for small ROVs.

A main propulsion device for AUVs with a diameter of no more than 200mm, or the main propulsion for small ROVs.

Its unique seven-bladed propeller design delivers greater thrust.

It delivers well-balanced efficiency at a speed of 1~4 knots and can operate stably in various complex underwater environments.

Driver Overall Dimensions Unit: mm

Working Water Depth: 0-6000m

Teknik özellikler:
Rated Speed: 2000r/min
Rated Voltage: 48 — 300 VDC
Housing Material: Aluminum Alloy / Titanium Alloy
Rotation Direction: CCW / CW
Propeller Material: Stainless Steel
Temperature: Storage: -40~70℃, Operating: -5~40℃
Sealing Type: Zero-Permeation Magnetic Coupling Rotary Seal
Working Water Depth: 0-850m / 0-1500m / 0-6000m / Full-Ocean DepthOil Filled Compensation for Depth ＞1500m
Driver: Built-in / External
Signal Power Supply: 12VDC(±5%），≤250mA
Fairing: Black
Control Mode / Speed Feedback: Analog Voltage (Pulse Feedback / Analog Voltage Feedback)PPM / RS485 / CAN
