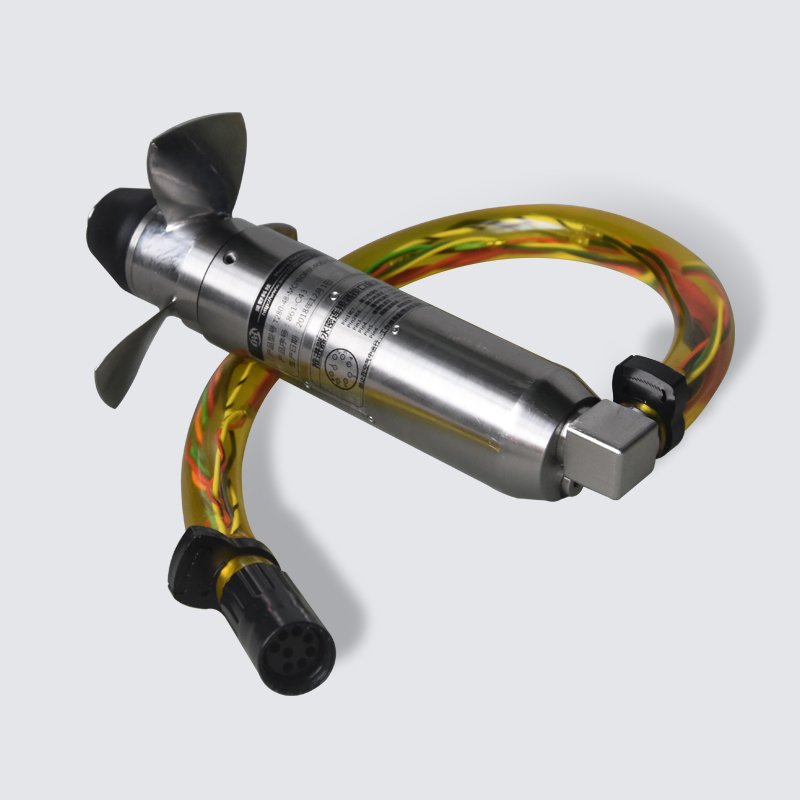

T280 Underwater Thruster

An auxiliary propulsion device specially designed for small ROVs or AUVs with a diameter of 300mm or more.

An auxiliary propulsion device specially designed for small ROVs or AUVs with a diameter of 300mm or more.

It features a unique design with symmetrical blades and equal forward and reverse thrust.

Its closed-loop speed control function ensures the speed accuracy of each unit reaches ±10rpm when multiple units are operated simultaneously, thus meeting the requirements for high consistency.

Driver Overall Dimensions Unit: mm

Working Water Depth: 0-6000m

Teknik özellikler:
Rated Speed: 2300r/min
Rated Voltage: 48 — 300 VDC
Housing Material: Aluminum Alloy / Titanium Alloy
Rotation Direction: CCW / CW
Propeller Material: Stainless Steel
Temperature: Storage: -40~70℃, Operating: -5~40℃
Sealing Type: Zero-Permeation Magnetic Coupling Rotary Seal
Working Water Depth: 0-850m / 0-1500m / 0-6000m / Full-Ocean DepthOil Filled Compensation for Depth ＞1500m
Driver: Built-in / External
Signal Power Supply: 12VDC(±5%），≤250mA
Fairing: None
Control Mode / Speed Feedback: Analog Voltage (Pulse Feedback / Analog Voltage Feedback)PPM / RS485 / CAN
