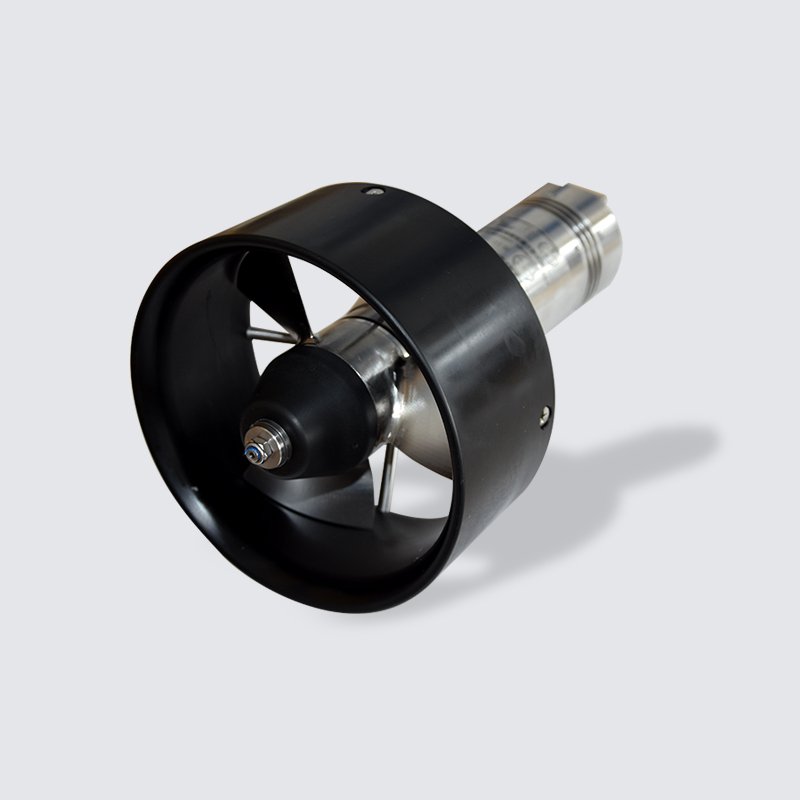

TZ545S Underwater Thruster

• Specifically designed for small and medium-sized ROV propulsion equipment, its propeller blades are symmetrical with balanced forward and reverse thrust.

• Specifically designed for small and medium-sized ROV propulsion equipment, its propeller blades are symmetrical with balanced forward and reverse thrust.

• Equipped with a closed-loop speed control function, which is a major highlight of this product.

• When multiple devices are used simultaneously, this function ensures that the speed accuracy of each device reaches ±10rpm, meeting the requirement of high consistency.

Driver Overall Dimensions Unit: mm

Operating Water Depth: 0-6000m

Teknik özellikler:
Rated Speed：: 2300r/min
Rated Voltage：: 300 VDC
Housing Material：: Aluminum Alloy / Titanium Alloy
Rotation Direction：: Left Rotation / Right Rotation
Propeller Material：: Stainless Steel
Temperature：: Storage Temperature: -40~70℃, Operating Temperature: -5~40℃
Sealing Type：: Zero-Permeability Magnetic Coupling Rotary Seal
Operating Water Depth：: 0-850m / 0-1500m / 0-6000m / Full Ocean DepthOil-Filled Compensation for Operating Water Depth >1500m
Driver：: Built-in / External
Signal Power Supply：: 12VDC(±5%），≤250mA
Fairing：: Black
Control Mode/Speed Feedback：: Analog Voltage (Pulse Feedback/Analog Voltage Feedback)PPM / RS485 / CAN
Operating Water Depth (m): 0-850
Overall Dimensions (mm): Diameter: 173
Length (mm): 318
Air Weight (Kg): 5.7
Underwater Weight (Kg): 4.3
Connector Model: MCBHRA8M+MCBHRA6M
