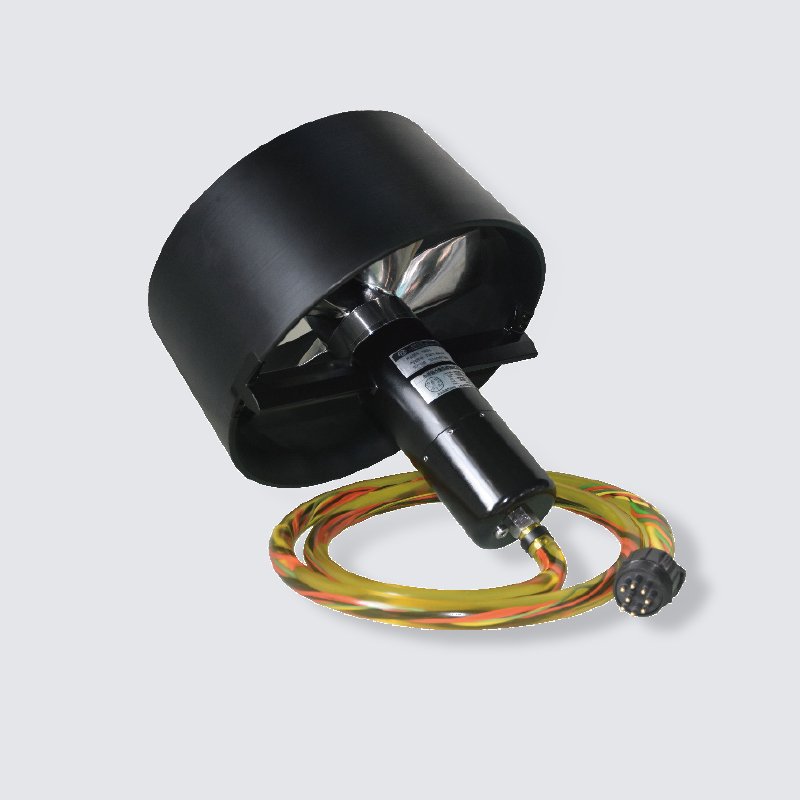

T680 Underwater Thruster

• The underwater thruster is specially designed for small and medium-sized ROV propulsion equipment.

• The underwater thruster is specially designed for small and medium-sized ROV propulsion equipment.

• The underwater thruster is equipped with a closed-loop speed control function to ensure that the speed accuracy of each device reaches ±10rpm, meeting the requirement of high consistency.

Thruster Overall Dimensions Unit: mm

Driver Overall Dimensions Unit: mm

Working Water Depth: 0-6000m

Thrust vs Speed Relationship Table (1)

Thrust vs Input Power Relationship Table (2)

Teknik özellikler:
Rated Speed: 760r/min
Rated Voltage: 60 — 350 VDC
Housing Material: Aluminum Alloy / Titanium Alloy
Rotation Direction: Left-hand Rotation / Right-hand Rotation
Propeller Material: Stainless Steel
Temperature: Storage Temperature: -40~70℃, Operating Temperature: -5~40℃
Sealing Type: Zero-Permeation Magnetic Coupling Rotary Seal
Working Water Depth: 0-850m / 0-1500m / 0-6000m / Full Ocean DepthOil-filled compensation for working water depth>1500m
Driver: Built-in / External
Signal Power Supply: 12VDC(±5%), ≤250mA
Fairing: Black
Control Method/Speed Feedback: Analog Voltage (Pulse Feedback/Analog Voltage Feedback)PPM / RS485 / CAN
