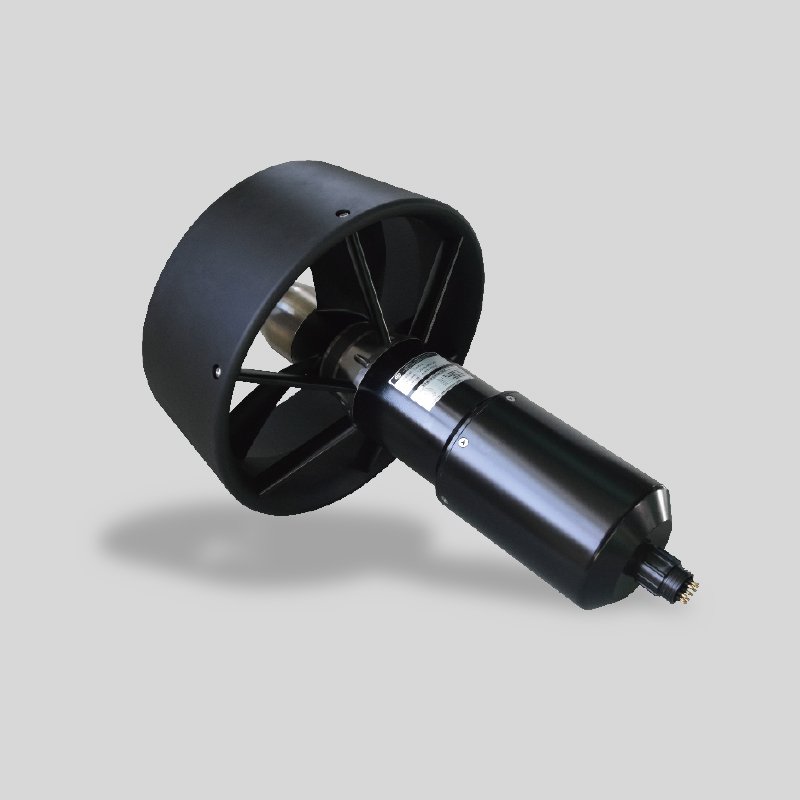

T2030 Underwater Thruster

• This is a propulsion device suitable for AUVs with a diameter of 450mm or above, or medium-sized Remotely Operated Vehicles (ROVs).

• This is a propulsion device suitable for AUVs with a diameter of 450mm or above, or medium-sized Remotely Operated Vehicles (ROVs).

• At a speed of 1~4 knots, its efficiency performance is relatively balanced, enabling stable operation in various complex underwater environments.

Thruster Overall Dimensions Unit: mm

Driver Overall Dimensions Unit: mm

Working Water Depth: 0-6000m

Thrust vs. Rotational Speed Table (1)

Thrust vs. Input Power Table (2)

Teknik özellikler:
Rated Speed: 1600r/min
Rated Voltage: 260 / 300 / 330 VDC
Housing Material: Aluminum Alloy / Titanium Alloy
Rotation Direction: Left-hand Rotation / Right-hand Rotation
Propeller Material: Stainless Steel
Temperature: Storage Temperature: -40~70℃, Operating Temperature: -5~40℃
Sealing Type: Zero-Permeation Magnetic Coupling Rotary Seal
Working Water Depth: 0-850m / 0-1500m / 0-6000m / Full Ocean DepthOil-filled compensation for working water depth>1500m
Driver: Built-in / External
Signal Power Supply: 12VDC(±5%)
Fairing: Black
Control Method/Speed Feedback: Analog Voltage (Pulse Feedback/Analog Voltage Feedback)PPM / RS485 / CAN
